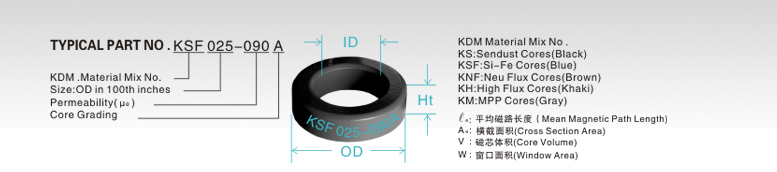

リング状コア規格

KDM PartNo.	Before Coating (mm)			After coating(mm)			Ae(cm2)	le(cm)	V(cm3)	W(cm2)	Perm.[μ]	AL (nH/N2)	Download
	OD	ID	HT	OD	ID	HT
	Max.	Min.	Max.	Max.	Min.	Max.
KSF025-026A	6.35	2.79	2.79	6.990	2.290	3.430	0.047	1.361	0.064	0.041	26	10
KSF025-040A	6.35	2.79	2.79	6.990	2.290	3.430	0.047	1.361	0.064	0.041	40	16
KSF025-060A	6.35	2.79	2.79	6.990	2.290	3.430	0.047	1.361	0.064	0.041	60	24
KSF025-075A	6.35	2.79	2.79	6.990	2.290	3.430	0.047	1.361	0.064	0.041	75	30
KSF025-090A	6.35	2.79	2.79	6.990	2.290	3.430	0.047	1.361	0.064	0.041	90	36
KSF027-026A	6.60	2.67	2.54	7.240	2.160	3.180	0.047	1.363	0.064	0.041	26	11
KSF027-040A	6.60	2.67	2.54	7.240	2.160	3.180	0.047	1.363	0.064	0.041	40	17
KSF027-060A	6.60	2.67	2.54	7.240	2.160	3.180	0.047	1.363	0.064	0.041	60	26
KSF027-075A	6.60	2.67	2.54	7.240	2.160	3.180	0.047	1.363	0.064	0.041	75	32
KSF027-090A	6.60	2.67	2.54	7.240	2.160	3.180	0.047	1.363	0.064	0.041	90	39
KSF026-026A	6.60	2.67	4.78	7.240	2.160	5.540	0.092	1.363	0.125	0.038	26	21
KSF026-040A	6.60	2.67	4.78	7.240	2.160	5.540	0.092	1.363	0.125	0.038	40	33
KSF026-060A	6.60	2.67	4.78	7.240	2.160	5.540	0.092	1.363	0.125	0.038	60	50
KSF026-075A	6.60	2.67	4.78	7.240	2.160	5.540	0.092	1.363	0.125	0.038	75	62
KSF026-090A	6.60	2.67	4.78	7.240	2.160	5.540	0.092	1.363	0.125	0.038	90	74
KSF031-026A	7.87	3.96	3.18	8.510	3.430	3.810	0.061	0.061	0.061	0.061	26	11
KSF031-040A	7.87	3.96	3.18	8.510	3.430	3.810	0.061	0.061	0.061	0.061	40	17
KSF031-060A	7.87	3.96	3.18	8.510	3.430	3.810	0.061	0.061	0.061	0.061	60	25
KSF031-075A	7.87	3.96	3.18	8.510	3.430	3.810	0.061	0.061	0.061	0.061	75	31
KSF031-090A	7.87	3.96	3.18	8.510	3.430	3.810	0.061	0.061	0.061	0.061	90	37
KSF039-026A	9.65	4.78	3.18	10.290	4.270	3.810	0.075	2.18	0.163	0.1442	26	11
KSF039-040A	9.65	4.78	3.18	10.290	4.270	3.810	0.075	2.18	0.163	0.1442	40	17
KSF039-060A	9.65	4.78	3.18	10.290	4.270	3.810	0.075	2.18	0.163	0.1442	60	25
KSF039-075A	9.65	4.78	3.18	10.290	4.270	3.810	0.075	2.18	0.163	0.1442	75	32
KSF039-090A	9.65	4.78	3.18	10.290	4.270	3.810	0.075	2.18	0.163	0.1442	90	38
KSF038-026A	9.65	4.78	3.96	10.290	4.270	4.600	0.094	2.18	0.206	0.142	26	14
KSF038-040A	9.65	4.78	3.96	10.290	4.270	4.600	0.094	2.18	0.206	0.142	40	21
KSF038-060A	9.65	4.78	3.96	10.290	4.270	4.600	0.094	2.18	0.206	0.142	60	32
KSF038-075A	9.65	4.78	3.96	10.290	4.270	4.600	0.094	2.18	0.206	0.142	75	40
KSF038-090A	9.65	4.78	3.96	10.290	4.270	4.600	0.094	2.18	0.206	0.142	90	48
KSF040-026A	10.20	5.08	3.96	10.800	4.570	4.600	0.1	2.38	0.238	0.164	26	14
KSF040-040A	10.20	5.08	3.96	10.800	4.570	4.600	0.1	2.38	0.238	0.164	40	21
KSF040-060A	10.20	5.08	3.96	10.800	4.570	4.600	0.1	2.38	0.238	0.164	60	32
KSF040-075A	10.20	5.08	3.96	10.800	4.570	4.600	0.1	2.38	0.238	0.164	75	40
KSF040-090A	10.20	5.08	3.96	10.800	4.570	4.600	0.1	2.38	0.238	0.164	90	48
KSF044-026A	11.20	6.35	3.96	11.890	5.890	4.720	0.09	2.69	0.243	0.273	26	11
KSF044-040A	11.20	6.35	3.96	11.890	5.890	4.720	0.09	2.69	0.243	0.273	40	17
KSF044-060A	11.20	6.35	3.96	11.890	5.890	4.720	0.09	2.69	0.243	0.273	60	26
KSF044-075A	11.20	6.35	3.96	11.890	5.890	4.720	0.09	2.69	0.243	0.273	75	32
KSF044-090A	11.20	6.35	3.96	11.890	5.890	4.720	0.09	2.69	0.243	0.273	90	38
KSF050-026A	12.70	7.62	4.75	13.460	6.990	5.510	0.114	3.12	0.356	0.383	26	12
KSF050-040A	12.70	7.62	4.75	13.460	6.990	5.510	0.114	3.12	0.356	0.383	40	18
KSF050-060A	12.70	7.62	4.75	13.460	6.990	5.510	0.114	3.12	0.356	0.383	60	27
KSF050-075A	12.70	7.62	4.75	13.460	6.990	5.510	0.114	3.12	0.356	0.383	75	34
KSF050-090A	12.70	7.62	4.75	13.460	6.990	5.510	0.114	3.12	0.356	0.383	90	40
KSF065-026A	16.50	10.20	6.35	17.400	9.530	7.110	0.192	4.11	0.789	0.713	26	15
KSF065-040A	16.50	10.20	6.35	17.400	9.530	7.110	0.192	4.11	0.789	0.713	40	23
KSF065-060A	16.50	10.20	6.35	17.400	9.530	7.110	0.192	4.11	0.789	0.713	60	35
KSF065-075A	16.50	10.20	6.35	17.400	9.530	7.110	0.192	4.11	0.789	0.713	75	43
KSF065-090A	16.50	10.20	6.35	17.400	9.530	7.110	0.192	4.11	0.789	0.713	90	52
KSF068-026A	17.30	9.65	6.35	18.030	9.020	7.110	0.232	4.14	0.96	0.638	26	19
KSF068-040A	17.30	9.65	6.35	18.030	9.020	7.110	0.232	4.14	0.96	0.638	40	29
KSF068-060A	17.30	9.65	6.35	18.030	9.020	7.110	0.232	4.14	0.96	0.638	60	43
KSF068-075A	17.30	9.65	6.35	18.030	9.020	7.110	0.232	4.14	0.96	0.638	75	53
KSF068-090A	17.30	9.65	6.35	18.030	9.020	7.110	0.232	4.14	0.96	0.638	90	64
KSF080-026A	20.30	12.70	6.35	21.100	12.070	7.110	0.226	5.09	1.15	1.14	26	14
KSF080-040A	20.30	12.70	6.35	21.100	12.070	7.110	0.226	5.09	1.15	1.14	40	21
KSF080-060A	20.30	12.70	6.35	21.100	12.070	7.110	0.226	5.09	1.15	1.14	60	32
KSF080-075A	20.30	12.70	6.35	21.100	12.070	7.110	0.226	5.09	1.15	1.14	75	41
KSF080-090A	20.30	12.70	6.35	21.100	12.070	7.110	0.226	5.09	1.15	1.14	90	49
KSF090-026A	22.90	14.70	7.62	23.620	13.390	8.380	0.331	5.67	1.88	1.41	26	19
KSF090-040A	22.90	14.70	7.62	23.620	13.390	8.380	0.331	5.67	1.88	1.41	40	29
KSF090-060A	22.90	14.70	7.62	23.620	13.390	8.380	0.331	5.67	1.88	1.41	60	43
KSF090-075A	22.90	14.70	7.62	23.620	13.390	8.380	0.331	5.67	1.88	1.41	75	54
KSF090-090A	22.90	14.70	7.62	23.620	13.390	8.380	0.331	5.67	1.88	1.41	90	65
KSF092-026A	23.60	14.40	8.89	24.300	13.770	9.700	0.388	5.88	2.28	1.49	26	22
KSF092-040A	23.60	14.40	8.89	24.300	13.770	9.700	0.388	5.88	2.28	1.49	40	34
KSF092-060A	23.60	14.40	8.89	24.300	13.770	9.700	0.388	5.88	2.28	1.49	60	51
KSF092-075A	23.60	14.40	8.89	24.300	13.770	9.700	0.388	5.88	2.28	1.49	75	63
KSF092-090A	23.60	14.40	8.89	24.300	13.770	9.700	0.388	5.88	2.28	1.49	90	76
KSF107-026A	26.90	14.70	8.64	27.700	14.100	9.450	0.497	6.352	3.155	1.56	26	22
KSF107-040A	26.90	14.70	8.64	27.700	14.100	9.450	0.497	6.352	3.155	1.56	40	39
KSF107-060A	26.90	14.70	8.64	27.700	14.100	9.450	0.497	6.352	3.155	1.56	60	59
KSF107-075A	26.90	14.70	8.64	27.700	14.100	9.450	0.497	6.352	3.155	1.56	75	74
KSF107-090A	26.90	14.70	8.64	27.700	14.100	9.450	0.497	6.352	3.155	1.56	90	89
KSF090-026A-E14	22.90	15.00	14.00	23.620	13.390	15.000	0.608	5.67	3.454	1.41	26	35
KSF090-040A-E14	22.90	15.00	14.00	23.620	13.390	15.000	0.608	5.67	3.454	1.41	40	53
KSF090-060A-E14	22.90	15.00	14.00	23.620	13.390	15.000	0.608	5.67	3.454	1.41	60	79
KSF090-075A-E14	22.90	15.00	14.00	23.620	13.390	15.000	0.608	5.67	3.454	1.41	75	99
KSF090-090A-E14	22.90	15.00	14.00	23.620	13.390	15.000	0.608	5.67	3.454	1.41	90	119
KSF092-026A-E14	23.60	15.00	14.00	24.300	13.770	15.000	0.611	5.88	3.591	1.49	26	35
KSF092-040A-E14	23.60	15.00	14.00	24.300	13.770	15.000	0.611	5.88	3.591	1.49	40	53
KSF092-060A-E14	23.60	15.00	14.00	24.300	13.770	15.000	0.611	5.88	3.591	1.49	60	80
KSF092-075A-E14	23.60	15.00	14.00	24.300	13.770	15.000	0.611	5.88	3.591	1.49	75	99
KSF092-090A-E14	23.60	15.00	14.00	24.300	13.770	15.000	0.611	5.88	3.591	1.49	90	120
KSF106-026A	26.90	14.70	11.20	27.700	14.100	11.990	0.654	6.35	4.15	1.56	26	32
KSF106-040A	26.90	14.70	11.20	27.700	14.100	11.990	0.654	6.35	4.15	1.56	40	50
KSF106-060A	26.90	14.70	11.20	27.700	14.100	11.990	0.654	6.35	4.15	1.56	60	75
KSF106-075A	26.90	14.70	11.20	27.700	14.100	11.990	0.654	6.35	4.15	1.56	75	94
KSF106-090A	26.90	14.70	11.20	27.700	14.100	11.990	0.654	6.35	4.15	1.56	90	113
KSF092-026A-E18	23.60	14.40	18.00	24.300	13.770	19.000	0.786	5.88	4.616	1.49	26	45
KSF092-040A-E18	23.60	14.40	18.00	24.300	13.770	19.000	0.786	5.88	4.616	1.49	40	69
KSF092-060A-E18	23.60	14.40	18.00	24.300	13.770	19.000	0.786	5.88	4.616	1.49	60	103
KSF092-075A-E18	23.60	14.40	18.00	24.300	13.770	19.000	0.786	5.88	4.616	1.49	75	128
KSF092-090A-E18	23.60	14.40	18.00	24.300	13.770	19.000	0.786	5.88	4.616	1.49	90	154
KSF106-026A-E14	26.90	14.70	14.00	27.700	14.100	15.000	0.818	6.35	5.194	1.56	26	40.02446483
KSF106-040A-E14	26.90	14.70	14.00	27.700	14.100	15.000	0.818	6.35	5.194	1.56	40	62
KSF106-060A-E14	26.90	14.70	14.00	27.700	14.100	15.000	0.818	6.35	5.194	1.56	60	94
KSF106-075A-E14	26.90	14.70	14.00	27.700	14.100	15.000	0.818	6.35	5.194	1.56	75	118
KSF106-090A-E14	26.90	14.70	14.00	27.700	14.100	15.000	0.818	6.35	5.194	1.56	90	141
KSF106-026A-E18	26.90	14.70	18.00	27.700	14.100	19.000	1.051	6.35	6.67	1.56	26	51
KSF106-040A-E18	26.90	14.70	18.00	27.700	14.100	19.000	1.051	6.35	6.67	1.56	40	80
KSF106-060A-E18	26.90	14.70	18.00	27.700	14.100	19.000	1.051	6.35	6.67	1.56	60	120
KSF106-075A-E18	26.90	14.70	18.00	27.700	14.100	19.000	1.051	6.35	6.67	1.56	75	151
KSF106-090A-E18	26.90	14.70	18.00	27.700	14.100	19.000	1.051	6.35	6.67	1.56	90	181
KSF131-026A	33.00	19.90	8.76	33.830	19.300	9.700	0.551	8.147	4.49	2.93	26	22
KSF131-040A	33.00	19.90	8.76	33.830	19.300	9.700	0.551	8.147	4.49	2.93	40	34
KSF131-060A	33.00	19.90	8.76	33.830	19.300	9.700	0.551	8.147	4.49	2.93	60	51
KSF131-075A	33.00	19.90	8.76	33.830	19.300	9.700	0.551	8.147	4.49	2.93	75	64
KSF131-090A	33.00	19.90	8.76	33.830	19.300	9.700	0.551	8.147	4.49	2.93	90	76.5
KSF135-026A	34.30	23.40	8.89	35.100	22.560	9.830	0.454	8.95	4.06	4.01	26	16
KSF135-040A	34.30	23.40	8.89	35.100	22.560	9.830	0.454	8.95	4.06	4.01	40	25
KSF135-060A	34.30	23.40	8.89	35.100	22.560	9.830	0.454	8.95	4.06	4.01	60	38
KSF135-075A	34.30	23.40	8.89	35.100	22.560	9.830	0.454	8.95	4.06	4.01	75	47
KSF135-090A	34.30	23.40	8.89	35.100	22.560	9.830	0.454	8.95	4.06	4.01	90	57
KSF130-026A	33.00	19.90	10.70	33.830	19.300	11.610	0.672	8.15	5.48	2.93	26	28
KSF130-040A	33.00	19.90	10.70	33.830	19.300	11.610	0.672	8.15	5.48	2.93	40	41
KSF130-060A	33.00	19.90	10.70	33.830	19.300	11.610	0.672	8.15	5.48	2.93	60	61
KSF130-075A	33.00	19.90	10.70	33.830	19.300	11.610	0.672	8.15	5.48	2.93	75	76
KSF130-090A	33.00	19.90	10.70	33.830	19.300	11.610	0.672	8.15	5.48	2.93	90	91
KSF132-026A	33.00	19.90	11.18	33.830	19.300	11.990	0.698	8.147	5.687	2.93	26	28
KSF132-040A	33.00	19.90	11.18	33.830	19.300	11.990	0.698	8.147	5.687	2.93	40	43
KSF132-060A	33.00	19.90	11.18	33.830	19.300	11.990	0.698	8.147	5.687	2.93	60	65
KSF132-075A	33.00	19.90	11.18	33.830	19.300	11.990	0.698	8.147	5.687	2.93	75	81
KSF132-090A	33.00	19.90	11.18	33.830	19.300	11.990	0.698	8.147	5.687	2.93	90	97
KSF141-026A	35.80	22.40	10.50	36.630	21.540	11.280	0.678	8.98	6.088	3.64	26	24
KSF141-040A	35.80	22.40	10.50	36.630	21.540	11.280	0.678	8.98	6.088	3.64	40	37
KSF141-060A	35.80	22.40	10.50	36.630	21.540	11.280	0.678	8.98	6.088	3.64	60	56
KSF141-075A	35.80	22.40	10.50	36.630	21.540	11.280	0.678	8.98	6.088	3.64	75	70
KSF141-090A	35.80	22.40	10.50	36.630	21.540	11.280	0.678	8.98	6.088	3.64	90	84
KSF130-026A-E14	33.00	19.90	14.00	33.830	19.300	15.000	0.879	8.15	7.17	2.93	26	37
KSF130-040A-E14	33.00	19.90	14.00	33.830	19.300	15.000	0.879	8.15	7.17	2.93	40	54
KSF130-060A-E14	33.00	19.90	14.00	33.830	19.300	15.000	0.879	8.15	7.17	2.93	60	80
KSF130-075A-E14	33.00	19.90	14.00	33.830	19.300	15.000	0.879	8.15	7.17	2.93	75	99
KSF130-090A-E14	33.00	19.90	14.00	33.830	19.300	15.000	0.879	8.15	7.17	2.93	90	119
KSF130-026A-E18	33.00	19.90	18.00	33.830	19.300	19.000	1.13	8.15	9.219	2.93	26	47
KSF130-040A-E18	33.00	19.90	18.00	33.830	19.300	19.000	1.13	8.15	9.219	2.93	40	69
KSF130-060A-E18	33.00	19.90	18.00	33.830	19.300	19.000	1.13	8.15	9.219	2.93	60	103
KSF130-075A-E18	33.00	19.90	18.00	33.830	19.300	19.000	1.13	8.15	9.219	2.93	75	128
KSF130-090A-E18	33.00	19.90	18.00	33.830	19.300	19.000	1.13	8.15	9.219	2.93	90	153
KSF157-026A	39.90	24.10	14.50	40.720	23.300	15.370	1.072	9.84	10.5	4.27	26	35
KSF157-040A	39.90	24.10	14.50	40.720	23.300	15.370	1.072	9.84	10.5	4.27	40	54
KSF157-060A	39.90	24.10	14.50	40.720	23.300	15.370	1.072	9.84	10.5	4.27	60	81
KSF157-075A	39.90	24.10	14.50	40.720	23.300	15.370	1.072	9.84	10.5	4.27	75	101
KSF157-090A	39.90	24.10	14.50	40.720	23.300	15.370	1.072	9.84	10.5	4.27	90	121
KSF168-026A	42.90	24.20	16.26	44.000	23.300	17.160	1.475	10.216	15.741	3.644	26	47
KSF168-040A	42.90	24.20	16.26	44.000	23.300	17.160	1.475	10.216	15.741	3.644	40	72
KSF168-060A	42.90	24.20	16.26	44.000	23.300	17.160	1.475	10.216	15.741	3.644	60	108
KSF168-075A	42.90	24.20	16.26	44.000	23.300	17.160	1.475	10.216	15.741	3.644	75	135
KSF168-090A	42.90	24.20	16.26	44.000	23.300	17.160	1.475	10.216	15.741	3.644	90	161
KSF158-026A	40.13	22.08	17.00	40.940	21.270	17.890	1.537	9.51	15.043	3.551	26	53
KSF158-040A	40.13	22.08	17.00	40.940	21.270	17.890	1.537	9.51	15.043	3.551	40	81
KSF158-060A	40.13	22.08	17.00	40.940	21.270	17.890	1.537	9.51	15.043	3.551	60	122
KSF158-075A	40.13	22.08	17.00	40.940	21.270	17.890	1.537	9.51	15.043	3.551	75	152
KSF158-090A	40.13	22.08	17.00	40.940	21.270	17.890	1.537	9.51	15.043	3.551	90	183
KSF184-026A	46.70	24.10	18.00	47.630	23.320	18.920	1.99	10.74	21.3	4.27	26	59
KSF184-040A	46.70	24.10	18.00	47.630	23.320	18.920	1.99	10.74	21.3	4.27	40	90
KSF184-060A	46.70	24.10	18.00	47.630	23.320	18.920	1.99	10.74	21.3	4.27	60	135
KSF184-075A	46.70	24.10	18.00	47.630	23.320	18.920	1.99	10.74	21.3	4.27	75	169
KSF184-090A	46.70	24.10	18.00	47.630	23.320	18.920	1.99	10.74	21.3	4.27	90	202
KSF185-026A	46.70	28.70	15.20	47.630	27.890	16.130	1.34	11.63	15.53	6.11	26	37
KSF185-040A	46.70	28.70	15.20	47.630	27.890	16.130	1.34	11.63	15.53	6.11	40	57
KSF185-060A	46.70	28.70	15.20	47.630	27.890	16.130	1.34	11.63	15.53	6.11	60	86
KSF185-075A	46.70	28.70	15.20	47.630	27.890	16.130	1.34	11.63	15.53	6.11	75	107
KSF185-090A	46.70	28.70	15.20	47.630	27.890	16.130	1.34	11.63	15.53	6.11	90	128
KSF200-026A	50.80	31.80	13.50	51.690	30.940	14.350	1.251	12.73	15.93	7.5	26	32
KSF200-040A	50.80	31.80	13.50	51.690	30.940	14.350	1.251	12.73	15.93	7.5	40	49
KSF200-060A	50.80	31.80	13.50	51.690	30.940	14.350	1.251	12.73	15.93	7.5	60	73
KSF200-075A	50.80	31.80	13.50	51.690	30.940	14.350	1.251	12.73	15.93	7.5	75	91
KSF200-090A	50.80	31.80	13.50	51.690	30.940	14.350	1.251	12.73	15.93	7.5	90	109
KSF226-026A	57.20	26.40	15.20	58.000	25.600	16.100	2.29	12.5	28.6	5.14	26	60
KSF226-040A	57.20	26.40	15.20	58.000	25.600	16.100	2.29	12.5	28.6	5.14	40	92
KSF226-060A	57.20	26.40	15.20	58.000	25.600	16.100	2.29	12.5	28.6	5.14	60	138
KSF226-075A	57.20	26.40	15.20	58.000	25.600	16.100	2.29	12.5	28.6	5.14	75	175
KSF226-090A	57.20	26.40	15.20	58.000	25.600	16.100	2.29	12.5	28.6	5.14	90	207
KSF225-026A	57.20	35.60	14.00	58.000	34.700	14.860	1.444	14.3	20.65	9.48	26	33
KSF225-040A	57.20	35.60	14.00	58.000	34.700	14.860	1.444	14.3	20.65	9.48	40	50
KSF225-060A	57.20	35.60	14.00	58.000	34.700	14.860	1.444	14.3	20.65	9.48	60	75
KSF225-075A	57.20	35.60	14.00	58.000	34.700	14.860	1.444	14.3	20.65	9.48	75	94
KSF225-090A	57.20	35.60	14.00	58.000	34.700	14.860	1.444	14.3	20.65	9.48	90	112
KSF250-026A-E18	62.00	32.60	18.00	63.100	31.370	19.270	2.646	14.37	38.023	7.73	26	60
KSF250-040A-E18	62.00	32.60	18.00	63.100	31.370	19.270	2.646	14.37	38.023	7.73	40	92
KSF250-060A-E18	62.00	32.60	18.00	63.100	31.370	19.270	2.646	14.37	38.023	7.73	60	138
KSF250-075A-E18	62.00	32.60	18.00	63.100	31.370	19.270	2.646	14.37	38.023	7.73	75	173
KSF250-090A-E18	62.00	32.60	18.00	63.100	31.370	19.270	2.646	14.37	38.023	7.73	90	207
KSF250-026A-E20	62.00	32.60	20.00	63.100	31.370	21.270	2.94	14.37	42.248	7.73	26	66
KSF250-040A-E20	62.00	32.60	20.00	63.100	31.370	21.270	2.94	14.37	42.248	7.73	40	102
KSF250-060A-E20	62.00	32.60	20.00	63.100	31.370	21.270	2.94	14.37	42.248	7.73	60	154
KSF250-075A-E20	62.00	32.60	20.00	63.100	31.370	21.270	2.94	14.37	42.248	7.73	75	192
KSF250-090A-E20	62.00	32.60	20.00	63.100	31.370	21.270	2.94	14.37	42.248	7.73	90	230
KSF250-026A	62.00	32.60	25.00	63.100	31.370	26.270	3.675	14.37	52.81	7.73	26	83
KSF250-040A	62.00	32.60	25.00	63.100	31.370	26.270	3.675	14.37	52.81	7.73	40	128
KSF250-060A	62.00	32.60	25.00	63.100	31.370	26.270	3.675	14.37	52.81	7.73	60	192
KSF250-075A	62.00	32.60	25.00	63.100	31.370	26.270	3.675	14.37	52.81	7.73	75	240
KSF250-090A	62.00	32.60	25.00	63.100	31.370	26.270	3.675	14.37	52.81	7.73	90	288
KSF268-026A	68.00	36.00	20.00	69.400	34.700	21.400	3.104	16.33	50.69	9.62	26	62
KSF268-040A	68.00	36.00	20.00	69.400	34.700	21.400	3.104	16.33	50.69	9.62	40	95
KSF268-060A	68.00	36.00	20.00	69.400	34.700	21.400	3.104	16.33	50.69	9.62	60	143
KSF268-075A	68.00	36.00	20.00	69.400	34.700	21.400	3.104	16.33	50.69	9.62	75	179
KSF268-090A	68.00	36.00	20.00	69.400	34.700	21.400	3.104	16.33	50.69	9.62	90	214
KSF300-026A	77.80	49.20	12.70	78.900	48.200	13.840	1.77	20	34.7	17.99	26	30
KSF300-040A	77.80	49.20	12.70	78.900	48.200	13.840	1.77	20	34.7	17.99	40	45
KSF300-060A	77.80	49.20	12.70	78.900	48.200	13.840	1.77	20	34.7	17.99	60	68
KSF300-075A	77.80	49.20	12.70	78.900	48.200	13.840	1.77	20	34.7	17.99	75	85
KSF300-090A	77.80	49.20	12.70	78.900	48.200	13.840	1.77	20	34.7	17.99	90	102
KSF301-026A	77.80	49.20	15.90	78.900	48.200	17.020	2.27	19.95	45.3	17.99	26	37
KSF301-040A	77.80	49.20	15.90	78.900	48.200	17.020	2.27	19.95	45.3	17.99	40	57
KSF301-060A	77.80	49.20	15.90	78.900	48.200	17.020	2.27	19.95	45.3	17.99	60	85
KSF301-075A	77.80	49.20	15.90	78.900	48.200	17.020	2.27	19.95	45.3	17.99	75	107
KSF301-090A	77.80	49.20	15.90	78.900	48.200	17.020	2.27	19.95	45.3	17.99	90	128
KSF290-026A	74.10	45.30	35.00	75.200	44.070	36.270	5.04	18.38	92.64	15.25	26	89
KSF290-040A	74.10	45.30	35.00	75.200	44.070	36.270	5.04	18.38	92.64	15.25	40	137
KSF290-060A	74.10	45.30	35.00	75.200	44.070	36.270	5.04	18.38	92.64	15.25	60	206
KSF290-075A	74.10	45.30	35.00	75.200	44.070	36.270	5.04	18.38	92.64	15.25	75	257
KSF290-090A	74.10	45.30	35.00	75.200	44.070	36.270	5.04	18.38	92.64	15.25	90	309
KSF401-026A	101.60	57.15	13.59	103.120	55.750	14.860	2.9716	24.271	72.122	24.413	26	40
KSF401-040A	101.60	57.15	13.59	103.120	55.750	14.860	2.9716	24.271	72.122	24.413	40	61
KSF401-060A	101.60	57.15	13.59	103.120	55.750	14.860	2.9716	24.271	72.122	24.413	60	92
KSF401-075A	101.60	57.15	13.59	103.120	55.750	14.860	2.9716	24.271	72.122	24.413	75	115
KSF401-090A	101.60	57.15	13.59	103.120	55.750	14.860	2.9716	24.271	72.122	24.413	90	139
KSF400-026A	101.60	57.15	16.51	103.120	55.750	17.780	3.5226	24.271	85.495	24.413	26	48
KSF400-040A	101.60	57.15	16.51	103.120	55.750	17.780	3.5226	24.271	85.495	24.413	40	75
KSF400-060A	101.60	57.15	16.51	103.120	55.750	17.780	3.5226	24.271	85.495	24.413	60	112
KSF400-075A	101.60	57.15	16.51	103.120	55.750	17.780	3.5226	24.271	85.495	24.413	75	137
KSF400-090A	101.60	57.15	16.51	103.120	55.750	17.780	3.5226	24.271	85.495	24.413	90	164
KSF520-026A	132.54	78.59	20.32	133.960	77.040	21.720	5.3471	32.428	173.4	46.612	26	54
KSF520-040A	132.54	78.59	20.32	133.960	77.040	21.720	5.3471	32.428	173.4	46.612	40	83
KSF520-060A	132.54	78.59	20.32	133.960	77.040	21.720	5.3471	32.428	173.4	46.612	60	124
KSF520-075A	132.54	78.59	20.32	133.960	77.040	21.720	5.3471	32.428	173.4	46.612	75	155
KSF520-090A	132.54	78.59	20.32	133.960	77.040	21.720	5.3471	32.428	173.4	46.612	90	187
KSF521-026A	132.54	78.59	25.40	133.960	77.040	26.800	6.71	32.429	217.58	46.612	26	68
KSF521-040A	132.54	78.59	25.40	133.960	77.040	26.800	6.71	32.429	217.58	46.612	40	104
KSF521-060A	132.54	78.59	25.40	133.960	77.040	26.800	6.71	32.429	217.58	46.612	60	156
KSF521-075A	132.54	78.59	25.40	133.960	77.040	26.800	6.71	32.429	217.58	46.612	75	195
KSF521-090A	132.54	78.59	25.40	133.960	77.040	26.800	6.71	32.429	217.58	46.612	90	234
KSF650-026A-E25.4	165.000	88.90	25.400	167.20	86.900	26.800	9.46	38.65	365.63	59.31	26	80
KSF650-040A-E25.4	165.000	88.90	25.400	167.20	86.900	26.800	9.46	38.65	365.63	59.31	40	123
KSF650-060A-E25.4	165.000	88.90	25.400	167.20	86.900	26.800	9.46	38.65	365.63	59.31	60	184
